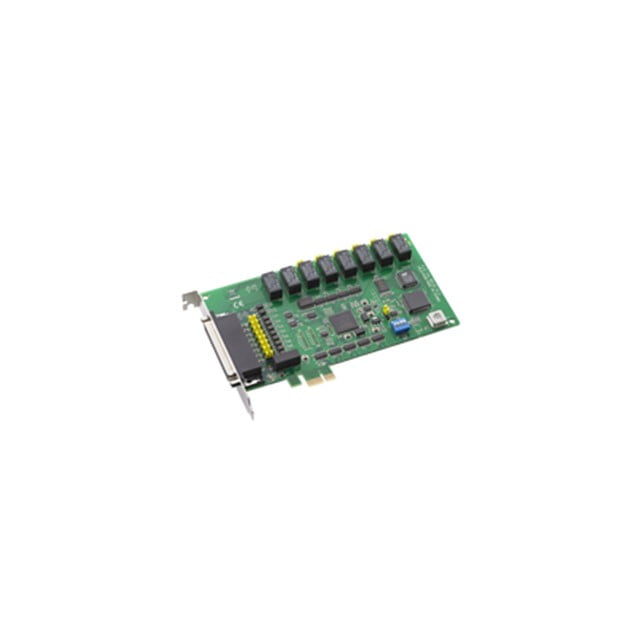

Advantech 8 Channel Relay & 8 Channel IDI Universal PCIE Card (PCIE-1760-AE)
Deskripsi
| Category | Attribute | Value |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Counter/Encoder Input | Channels | 2 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Digital Input | Channels | 8 (Isolated) |
| Digital Input | Isolation Protection | 2,500 VDC |
| Relay Output | Channels | 2 Form C, 6 Form A |
| Relay Output | Contact Rating (Resistive) | 1 A @ 30 VDC, 0.5 A @ 125 VAC |
Informasi Tambahan
| Brand |
Advantech |
|---|
