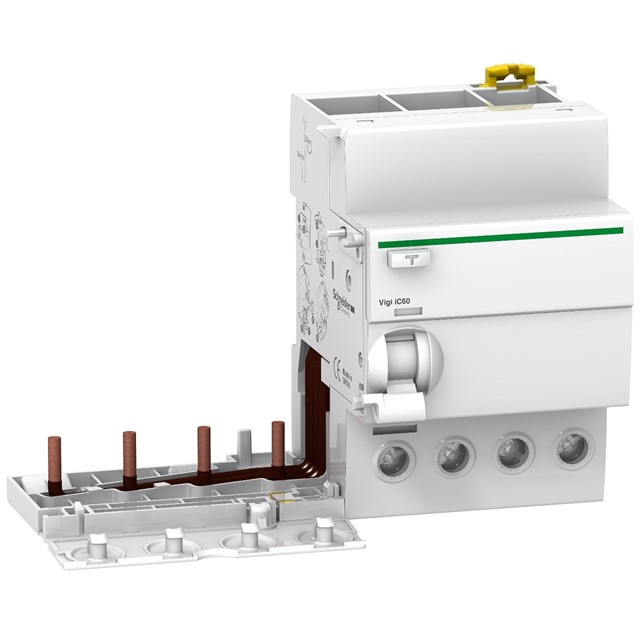

Schneider Vigi iC60 – 4P – 63A – 300mA (A9V15463)
Rp2.727.270
Deskripsi
Spesifikasi A9V15463
| Range | Acti9 |
|---|---|
| Product or component type | Add-on residual current devices |
| device short name | Vigi iC60 |
| Poles description | 4P |
| [In] rated current | 63 A |
| Earth-leakage sensitivity | 300 mA |
| Earth-leakage protection time delay | Selective |
| Earth leakage protection type | Type AC |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz conforming to EN 61009-1 400/415 V AC 50/60 Hz conforming to IEC 61009-1 |
| standards | EN 61009-1 IEC 61009-1 |
| 9 mm pitches | 7 |
| Device location in system | Outgoer |
|---|---|
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Range compatibility | Acti 9 (Acti9 iC60) Acti 9 (Acti9 Reflex iC60) |
| Product compatibility | Single terminal |
| Local signalling | Trip indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Electrical connection to mcb | By screws |
| Comb busbar and distribution block compatibility | Bottom: YES |
| Height | 91 mm |
| Width | 135 mm |
| Depth | 73.5 mm |
| Product weight | 0.245 kg |
| Connections – terminals | Tunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end |
| Wire stripping length | 14 mm for bottom connection |
| Tightening torque | 3.5 N.m bottom |
